Thunder Laser - NOVA 63 LASER

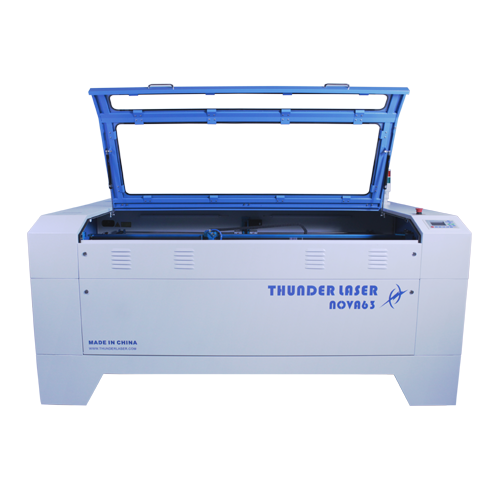

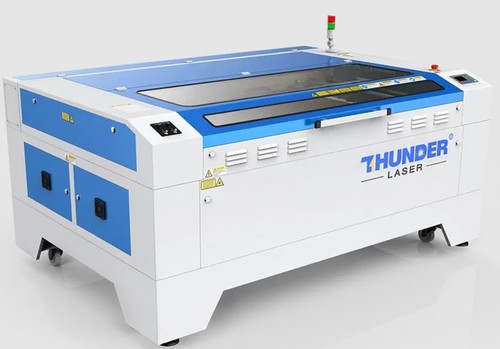

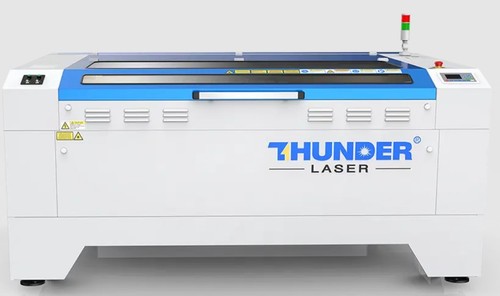

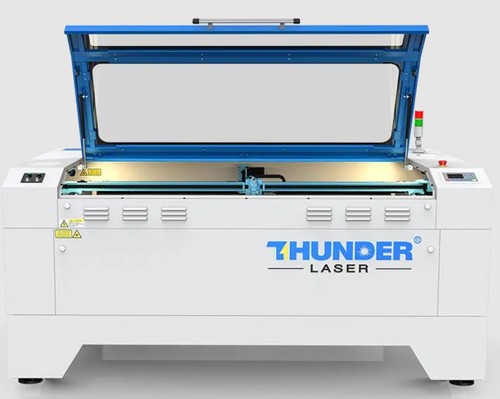

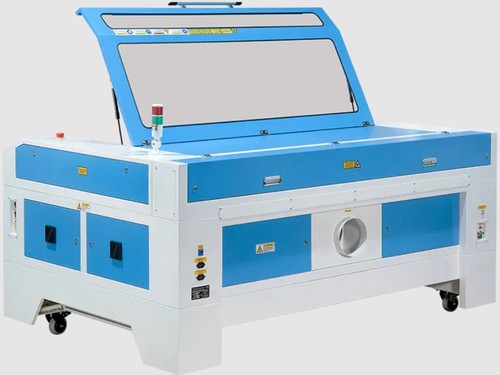

Nova Laser Cutting Machine

The THUNDER Nova laser cutter is equipped with a cutting-edge hybrid servo system. As a result, the Nova laser works faster and more quietly than its competitors. Precise cutting is the biggest advantage of Thunder Nova laser. Besides, Thunder Nova laser’s unique dual gas assist system can be set individually. So it provides different processing effects for diversified 3D cutting.

We have first-class components, high-quality production and strict inspection process. These advantages guarantee the unrivaled stability of our thunder lasers. What’s more, you don’t need to maintain the machine frequently. Additionally, our CE Class 1 and FDA Class 2 certified machines feature advanced safety features. This gives operators more confidence in any 3D design.

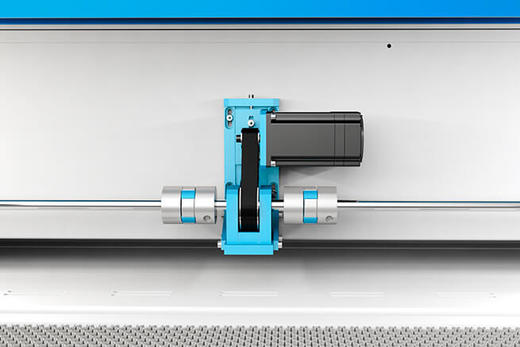

Hybrid Servo motors

Thunder Laser cutting machine use the Hybrid servo motor. This motor works with low noise and high speed. Meanwhile it has the impact protection and high security to work stable. The more important thing is that this motor can provide very fast acceleration and through the closed-loop control it can make sure the high speed working without losing steps, which can greatly increase the working efficiency of the laser machine.

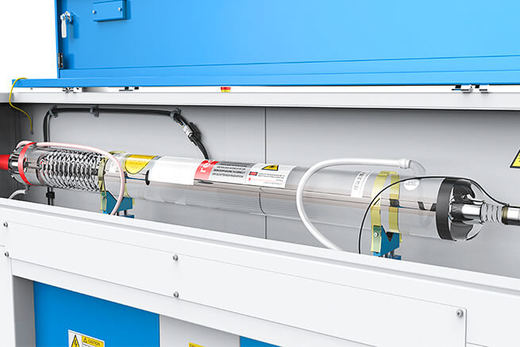

High Quality laser tube

We conduct strict quality control tests on each laser tube. After passing the test, we install the laser tube on the laser cutting machine. After we assembled the laser cutting machine, we will perform several cutting and engraving tests. During the test, if there are problems with poor laser beam quality, unstable laser output power, and slow switch response, we will exclude these inferior laser tubes.

We guarantee that each laser cutting machine has excellent working quality and stability. That’s why Thunder laser cutting machine can emit finer laser points. Thunder laser provides you with a more delicate cutting and engraving effect.

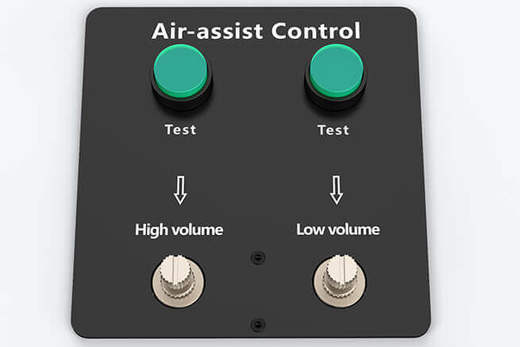

Dual Air Assist system

Accurate control of your air assist for cutting and engraving. High and low air pressures allow for cleaner result.

Controlled by the smart board, there are 2 modes for Thunder Laser machine’s air assist feature. Usually we set Low volumn air for engrave and High volumn air for cut on the design drawing layer on laser software, so as to get cleaner results on both engraving and cutting process.

This also works on Lightburn software. For cutting, just toggle air assist ON; for engraving, toggle air assist OFF and it will activate the low air stage.

Air assist is an important feature to lower the risk of meterials’ catching fire when being heated by laser. Also air assist prevents the lens from the smoke and dust generated during laser processing on materials.

Neither the Low volume air or high volumn air will be activated until the laser starts. So this proprietary Dual air function also helps on energy conservation and noise reduction.

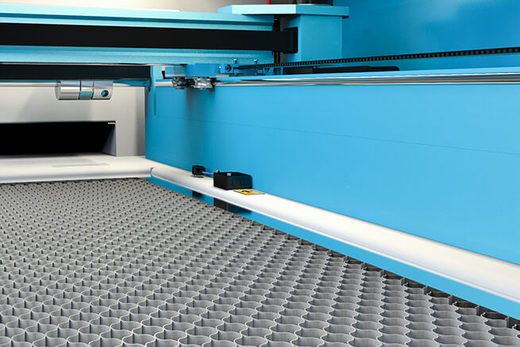

Quick & Accurarte Autofocus

In order for the wood laser cutting machine to achieve the best cutting effect, we will focus the laser beam when it touches the material on the laser cutting engraving machine. Because the smaller the laser beam, the better it will perform. The automatic focus function can move the table up and down to ensure the optimal distance between the material and the focusing mirror.

By using the auto-focus function of the laser cutting machine, users can focus quickly and accurately before cutting and engraving. In this way, Thunder laser saves you a lot of cutting and engraving time, and brings you better cutting and engraving results.

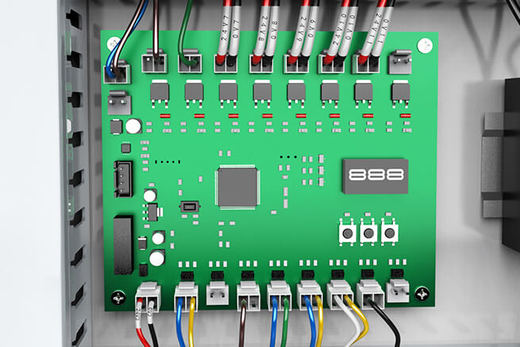

Smart Energy safety board

Smart board is used to control exhaust fan, air pump and alarm lamp while laser working.

The smart board is specially designed by Thunder Laser to automatically control the on/off of exhaust fan and air pump according to the need of the laser work.

It facilitates energy saving and noise reduction. Meanwhile, colors of alarm lamp are also controlled by it to show the working state of the laser.



For example:

When the machine is not at work, or working with the top cover close, the alarm lamp is in green color. If the top cover opened during laser working, the alarm lamp turns red. Besides, manually or automatically you can extend the working time of exhaust fan, air assist by setting on the smart board.

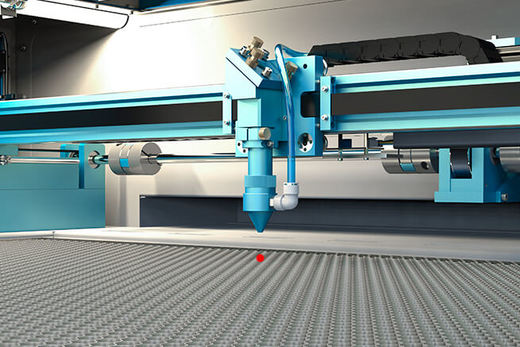

Red dot pointer

As we all know, CO2 laser is invisible, we cannot know the position of the laser point when the laser engraving machine is working. However, we need to know the accurate position before working on the material most of the time, so how to achieve it? Thunder laser engraving machine dedicated red dot pointer can help you solve this problem.

Thunder laser engraving machine adopts a special laser beam combiner structure. It can combine red light with a wavelength of 650nm and carbon dioxide laser with a wavelength of 10600nm into one. This method turns the invisible carbon dioxide laser into visible light. The combination structure of red dot pointer and beam helps to clarify the exact position of the laser before cutting and engraving. It helps you greatly reduce deviations and saves you time and material waste.

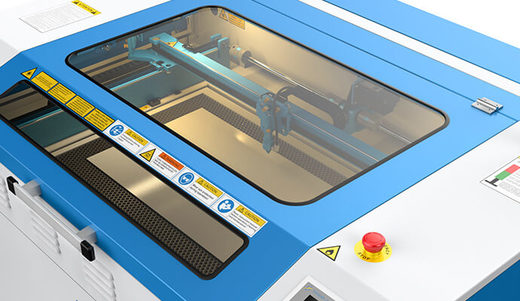

User safety plays a significant role in designing and manufacturing. Our Nova Laser Cutting machines, giving the operators the confidence to use the machine entirely. We have installed safety devices for each machine: like emergency stops, alarm lamps, water protection switches, and earth wiring. Besides, we have other security measures in place to protect users.

The built-in heat detector alarm automatically switches on in the event of abnormal machine activity. Additionally, our Nova laser is equipped with 5x open flap protection. Also, the durable protection window made from tempered glass material keeps the laser within the production space. It keeps the operators away from the laser beam.
